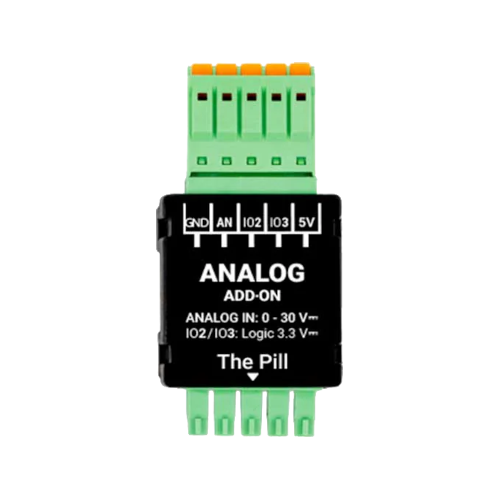

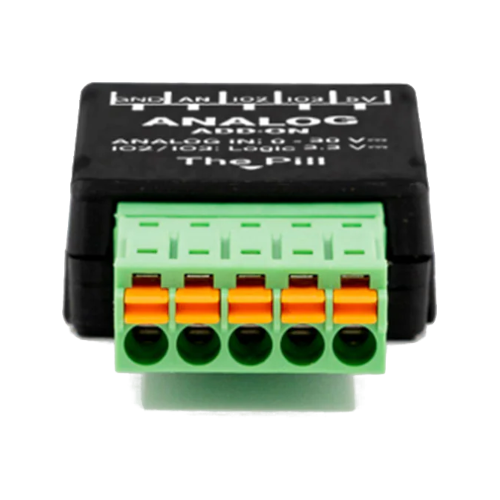

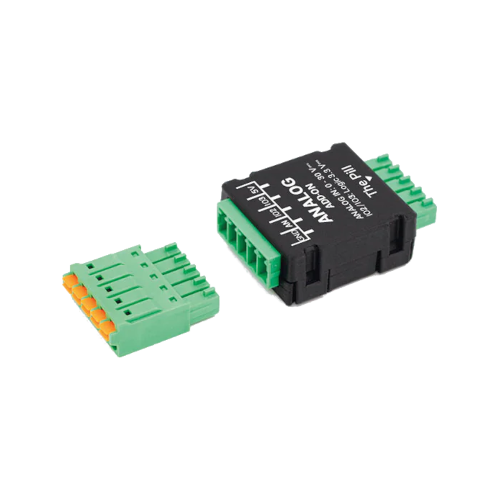

The Analog 0–30 V Add-on for the Shelly Pill is a powerful expansion module designed to bring accurate voltage and analogue sensor monitoring into your setup. By extending the Shelly Pill’s measurement range up to 30V DC, it allows you to track batteries, power supplies, and a wide variety of analogue sensors with precision. Connected via the 5-Terminal Add-on, it transforms the Shelly Pill into a flexible monitoring hub for both DIY projects and professional applications.
With a dedicated analogue input and two additional configurable digital I/Os, this add-on provides both measurement and control capabilities in one compact module. It supports common analogue sensors such as light, soil moisture, or sound sensors, as well as industrial 0–10 V signals used in more advanced systems. The built-in 5V output also allows you to power connected sensors directly, simplifying installation and reducing the need for additional components.
• Measures DC voltage from 0–30 V
• Supports analogue sensors and battery monitoring
• 1 analogue input + 2 configurable digital I/Os (3.3V logic)
• 5V power output for connected devices
• Works with The Pill via the 5-Terminal Add-on

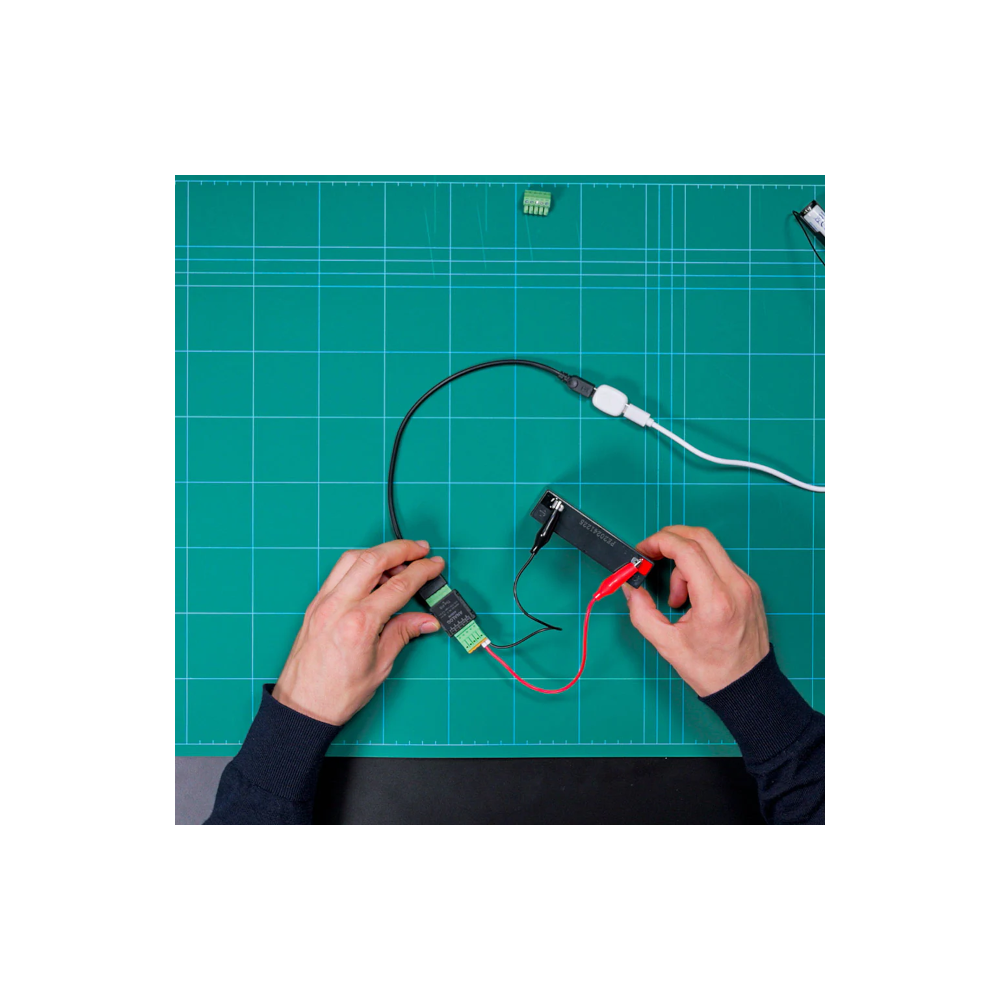

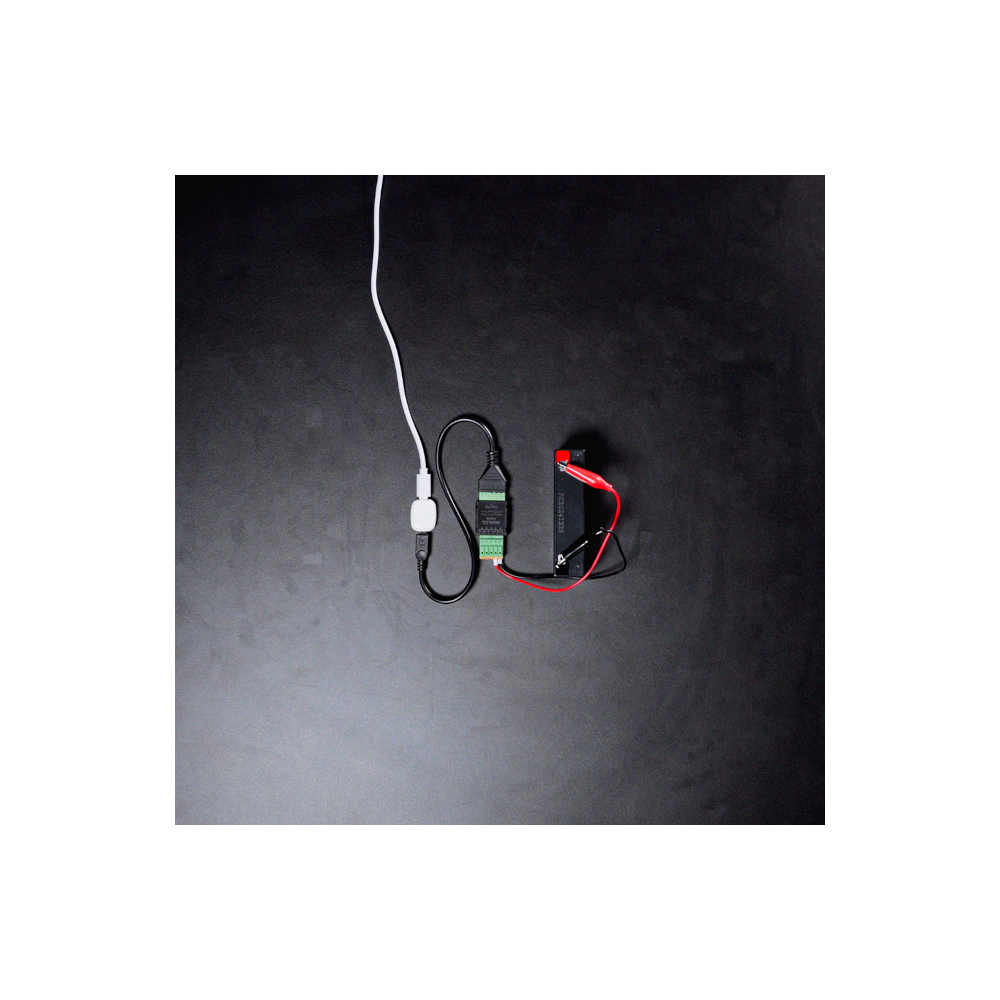

Whether you’re monitoring battery health, integrating industrial sensors, or building custom automation projects, the Analog 0–30 V Add-on gives you the data you need in real time. It’s the ideal solution for expanding the Shelly Pill’s capabilities into precise, low-voltage measurement and control.
* Requires the 5-Terminal Add-on to connect to the Shelly Pill.
