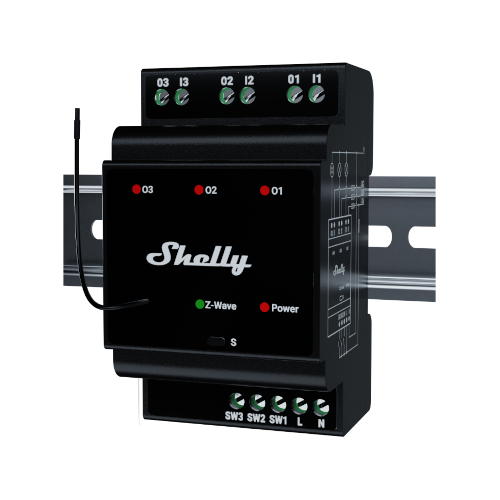

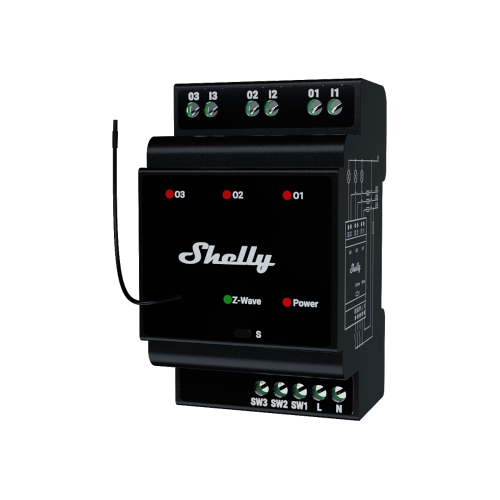

Shelly Wave Pro 3 LR

£74.99 Excl. VAT £62.49

In stock

Professional 3-channel DIN rail Z-Wave™ smart switch with dry contacts​

The Shelly Wave Pro 3 LR is a professional-grade smart relay designed for powerful automation in both residential and commercial settings. With three independent channels of up to 16A each (48A total), it gives you reliable control over lighting, appliances, and a wide variety of electrical systems. Its potential-free (dry contact) outputs make it highly versatile, supporting both low and high voltages, while the DIN rail design ensures seamless integration into breaker boxes for new builds or professional installations. Now featuring Z-Wave Long Range (ZWLR), it maintains a strong, stable connection over distances of up to 1km line of sight, providing outstanding reliability across large properties.

Thanks to the latest Z-Wave 800 series, you’ll enjoy ultra-low power consumption (only 0.3W), advanced security with S2 authenticated encryption, and simple SmartStart setup — just scan and connect. The device is fully compatible with all certified Z-Wave devices and gateways, enabling you to create custom schedules, smart scenes, and automation scenarios tailored to your lifestyle or business operations. Whether you’re managing home appliances, office lighting, or complex commercial systems, the Shelly Wave Pro 3 LR makes energy optimisation effortless.

• 3 channels, 16 A each (48 A total)
• Z-Wave Long Range for up to 1 km connectivity (line of sight)
• Potential-free dry contacts for flexible voltage control
• DIN rail mountable, professional-grade design
• SmartStart setup and OTA firmware updates
• Advanced S2 security with AES128 encryption

From reducing energy waste in offices, to managing indoor climate in hotels, to automating appliances at home, the Shelly Wave Pro 3 LR is built for demanding environments where performance, range, and reliability matter most.

*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.​

  • Z-Wave operated

    Compatible with all certified Z-Wave gateways. Acts as a Z-Wave signal repeater, extending your Z-Wave network range.

  • Automatic set-up

    Uses SmartStart for automatic inclusion to your Z-Wave network.

  • Ultra-low power consumption

    The device operates at less than 0.3W.

  • DIN-mountable

    Intended to be installed inside the breaker box and designed to meet the global DIN rail standardization.​

  • Dry contacts

    Use a wide range of output voltage levels. Supports low voltages.

  • Local connections

    Establish direct communication between devices your Z-Wave local network and set custom actions with no hub present!

  • Bulletproof security

    Security 2 (AES128 encryption) for the utmost safety of your Z-Wave network.

Specification


Power

  • Power supply 110-240V ±10% 50/60Hz AC
  • Max switching voltage AC 240V
  • Max switching voltage DC 30V
  • Max switching current AC 16A per channel, 48A total
  • Max switching current DC 16A per channel, 48A total
  • Power consumption < 0.3W
  • Z-Wave™ frequency bands 864.0 MHz (Mesh network) / 868.4 MHz (LR network)

Features

  • Clean contact relay Yes
  • Power measurement No
  • Voltage protection / Cutoff No
  • Current protection / Cutoff No
  • Max power protection / Cutoff No
  • Overheating protection Yes
  • Ambient temperature -20°C to 40°C / -5°F to 105°F
  • Humidity 30% to 70% RH

Connectivity

  • CPU Z-Wave™ S800
  • Z-Wave™ repeater Yes (not on LR network)
  • Maximum radio frequency power transmitted in frequency band(s) < 25mW
  • Operational range (depending on local construction) Up to 40m indoors (Mesh network)
    Up to 80m indoors, 1km outdoors (LR network)

Dimensions

  • (H x W x L) 96 x 53 x 59 ±0.5 mm
    3.78 x 2.01 x 2.32 ±0.02 in

How it works?

Download the Shelly Cloud application on your smartphone or tablet
Connect to your Z-Wave hub
Place the device wherever you wish
