Sale!

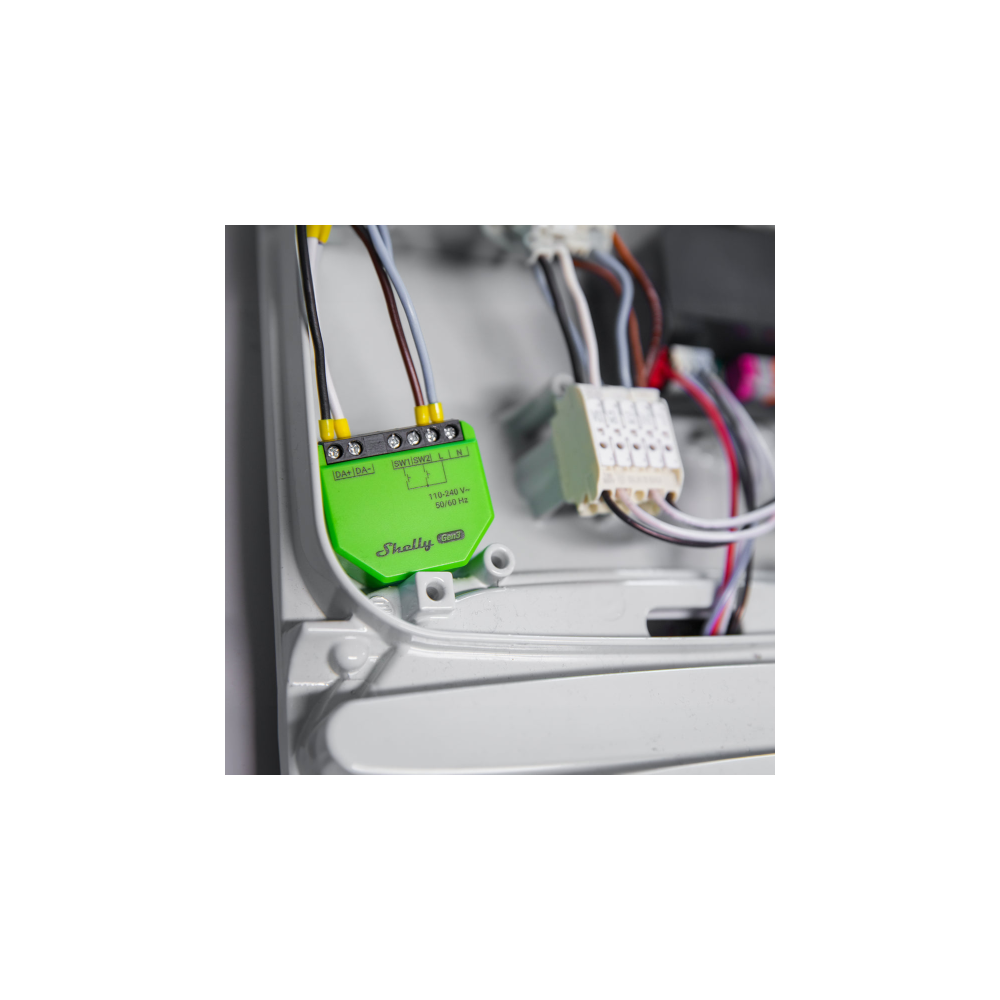

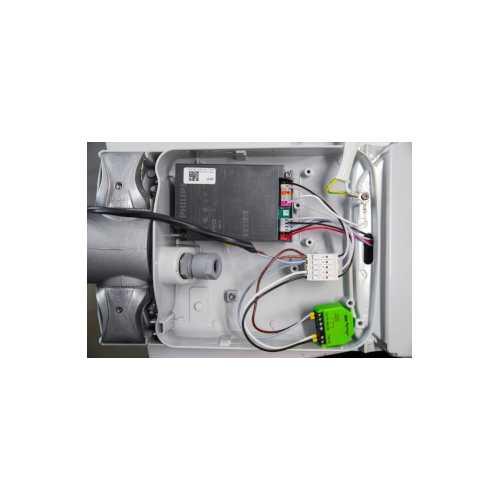

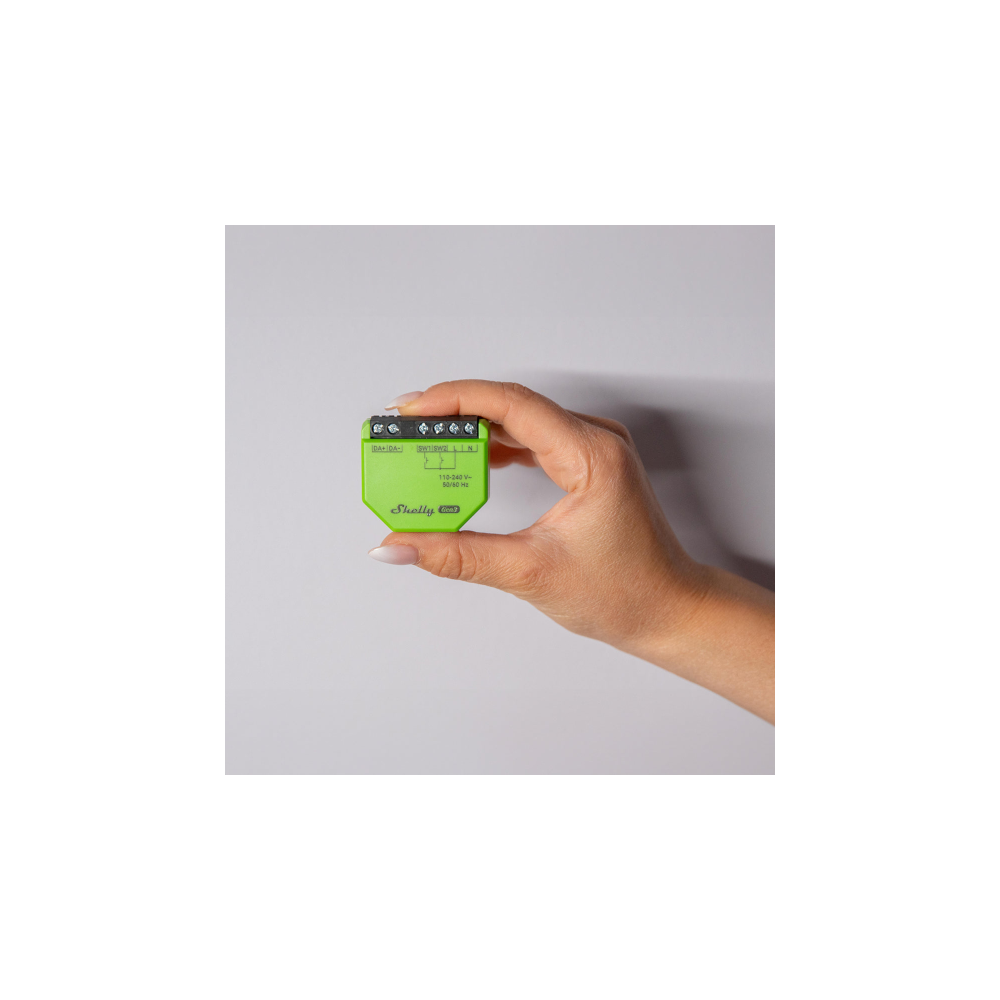

Shelly DALI Dimmer Gen3

£46.99 £49.99 Save £3.00 Excl. VAT £39.16

In stock

Smart Dimmer for DALI lights

Transform your lighting experience with the Shelly DALI Dimmer Gen3, a sophisticated gateway device that seamlessly integrates DALI lights into the Shelly ecosystem. This innovative solution offers precise brightness control and a range of advanced features, making it ideal for both home and office environments. With its single-master application controller, the Shelly DALI Dimmer Gen3 supports LED control gear (Part 207) and can manage up to five non-powered bus units with its integrated bus power supply, eliminating the need for additional power modules.

Experience the convenience of remote control and monitoring through the Shelly Smart Control app or any internet-connected device. The device’s embedded web interface allows for easy adjustment of settings and control of connected DALI lights. Enjoy flexible input control with switch or button modes, and customise your lighting experience with features like night mode, min/max brightness, and transition duration.

The Shelly DALI Dimmer Gen3 not only enhances your lighting system but also offers a cost-effective and flexible solution for expanding your smart home or office setup. With its robust features and easy integration with external sensors and input controls, it provides a predictable and repeatable brightness control experience, making it an essential addition to any smart ecosystem.

Key Features:
- Single-master DALI application controller for precise LED control
- Integrated bus power supply for up to five non-powered bus units
- Remote control and monitoring via Shelly Smart Control app
- Embedded web interface for easy settings adjustment
- Flexible input control with switch or button modes
- Night mode, min/max brightness, and transition duration settings
- Compatibility with Shelly Plus Add-on for sensor interface
- Support for scripting, webhooks, MQTT, and local actions
- KNXnet/IP communication for seamless integration into KNX systems
- No hub required for local or remote control
- Wi-Fi and Bluetooth connectivity with BLE gateway and Wi-Fi range extender

  • Night Mode

    Create comfortable ambient lighting and automatically adjust to your predefined brightness during specific hours of the day.

  • Flexible input control

    Use it with your existing switches, whether they're single or dual buttons.

  • KNX Support

    Shelly DALI Dimmer Gen3 integrates into KNX systems, offering a powerful and cost-effective solution for expanding your existing setup.

  • Smart schedules

    Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.

  • BLE Gateway

    Bridge between your Shelly BLU devices and the wider Shelly ecosystem. It receives Bluetooth signals and sends them to the cloud or locally to another non-bluetooth device.

  • WiFi operated

    Connect Shelly DALI Dimmer Gen3 to your WiFi network. No HUB required.

Specification


Power

  • Power Supply 110-240V AC ±10% 50/60Hz
  • Power consumption < 2W
  • Works without neutral No
  • Bus power supply Guaranteed 10mA (up to 5 DALI control gear units),
    Short circuit current < 35mA
  • Bus voltage 16V nominal

Features

  • Ambient working temperature -20°C to 40°C / -5°F to 105°F
  • Humidity 30% to 70% RH
  • Internal-temperature sensor Yes

Connectivity

  • WiFi protocol 802.11 b/g/n
  • WiFi RF band 2401-2495 MHz
  • WiFi max. RF power < 20dBm
  • Wi-Fi Range (depending on local construction) • up to 50m/160ft outdoors
    • up to 30m/100ft indoors
  • Bluetooth protocol 4.2
  • Bluetooth RF band 2400-2483.5 MHz
  • Bluetooth max. RF power < 4dBm
  • Bluetooth Range (depending on local construction) • up to 30m/100ft outdoors
    • up to 10m/33ft indoors

Dimensions

  • (H x W x L) 42x37x17 mm / 1.65x1.46x0.66 inch

How it works?

Download the Shelly Cloud application on your smartphone or tablet
Connect to your Wi-Fi router
Place the device wherever you wish
