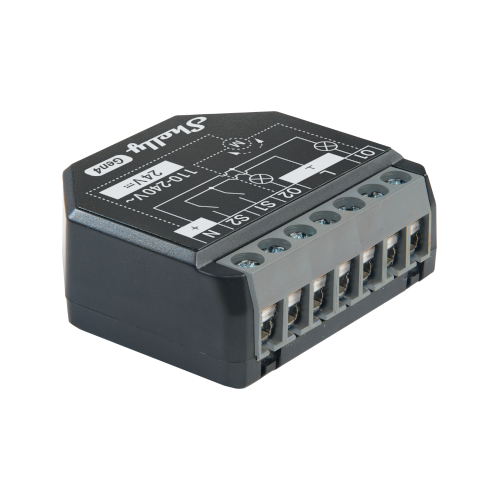

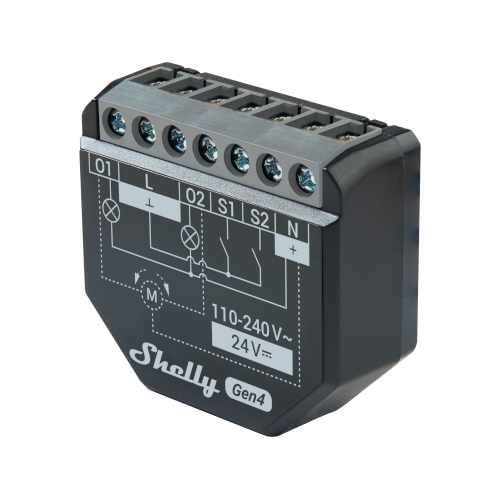

Shelly 2PM Gen4

£34.99 Excl. VAT £29.16

In stock

WiFi/Zigbee-operated dual relay switch with power monitoring and cover (roller) control

The Shelly 2PM Gen4 is a compact, dual-channel smart switch designed for next-level home and office automation. With support for WiFi, Zigbee, Bluetooth, and Matter, it offers unmatched flexibility and compatibility across platforms, making it simple to integrate into your preferred smart ecosystem. Its two independent channels can control appliances, lighting circuits, or motorised covers such as blinds, shutters, and curtains — all while delivering real-time power metering for each channel, so you can track energy usage and optimise efficiency.

This device is small enough to retrofit behind existing switches, yet powerful enough to manage bi-directional AC motors with precision. You can control roller shutters, automate curtain schedules, or adjust the tilt of venetian blind slats for the perfect balance of light and privacy. The Shelly 2PM Gen4 also functions as a WiFi and Zigbee range extender and includes a Bluetooth gateway, expanding your network while connecting your devices. Built-in overheating protection, advanced scripting capabilities, and wide protocol support (including Apple HomeKit via Matter) make it a future-proof choice for both residential and commercial automation projects.

• Dual-channel control on the same phase with independent power metering
• Multiprotocol support: WiFi, Zigbee, Bluetooth, Matter
• Cover and blinds control with precise position and slat angle adjustment
• Compact design for retrofitting behind switches and sockets
• WiFi & Zigbee extender + Bluetooth gateway functionality
• Smart schedules, scenes, scripting, and local/cloud control
• Secure integrations via HTTPS, MQTT, WebSockets, and KNX

Whether you’re automating lighting circuits, cutting energy costs by monitoring appliances, or creating a smart shading system that adapts to time of day and weather, the Shelly 2PM Gen4 brings intelligence, versatility, and reliability into every setup.

  • WiFi 6 support

    Connect Shelly 2PM Gen4 to your WiFi 6 network. No HUB required.

  • Zigbee connectivity

    Shelly Gen4 devices can connect to your Zigbee network and also act as a Zigbee extender.

  • Matter certified

    Shelly Gen4 devices can integrate into any Matter ecosystem.

  • Bluetooth

    Add devices quickly and easily to the Shelly Cloud app, using the Bluetooth connection.

  • Power metering with cloud data storage

    Shelly 2PM Gen4 provides precise monitoring of the power consumption per channel.

  • Smart schedules

    Create custom daily schedules or sunrise/sunset schedules for your devices.

  • Smart scenes

    Set custom scenes by combining Shelly 2PM Gen4 with your other Shelly devices.

  • Scripting

    Shelly 2PM Gen4 fully supports mjS scripting, allowing you to create custom features and functionalities.

Specification


Power

  • Power supply • 110-240V ±10% 50/60Hz AC
    • 24V DC ±10%
  • Max switching voltage AC 240V
  • Max switching voltage DC 30V
  • Max switching current AC 10A per channel, 16A total combined (18A total peak)
  • Max switching current DC 10A
  • Power consumption < 1.4W
  • External protection Tripping characteristic B or C
    16A max. rated current,
    min. 6 kA interrupting rating,
    energy limiting class 3

Features

  • Clean contact relay No
  • Power measurement Yes
  • Voltage protection / Cutoff Yes
  • Current protection / Cutoff Yes
  • Max power protection / Cutoff Yes
  • Internal-temperature sensor Yes
  • Ambient temperature -20°C to 40°C / -5°F to 105°F
  • Humidity 30% to 70% RH
  • Schedules 20
  • Webhooks (URL actions) 20 with 5 URLs per hook
  • MQTT Yes
  • UDP Yes
  • Scripting Yes

Connectivity

  • Wireless/WiFi Protocol 802.11 b/g/n/ax (2.4 GHz)
  • Frequency 2412-2472 MHz
  • Wi-Fi Range (depending on local construction) • up to 50m/160ft outdoors
    • up to 30m/100ft indoors
  • Zigbee Protocol 802.15.4
  • Zigbee Repeater Yes
  • Zigbee RF Bands 2400-2483.5 MHz
  • Zigbee Range (depending on local construction) • up to 300m outdoors
    • up to 100m indoors
  • Bluetooth Protocol 5
  • Bluetooth Range (depending on local construction) • up to 30m/100ft outdoors
    • up to 10m/33ft indoors

Dimensions

  • (H x W x L) 37 x 42 x 16 ±0.5 mm
    1.46 x 1.65 x 0.63 ±0.02 inch

How it works?

Download the Shelly Cloud application on your smartphone or tablet
Connect to your Wi-Fi router
Place the device wherever you wish
